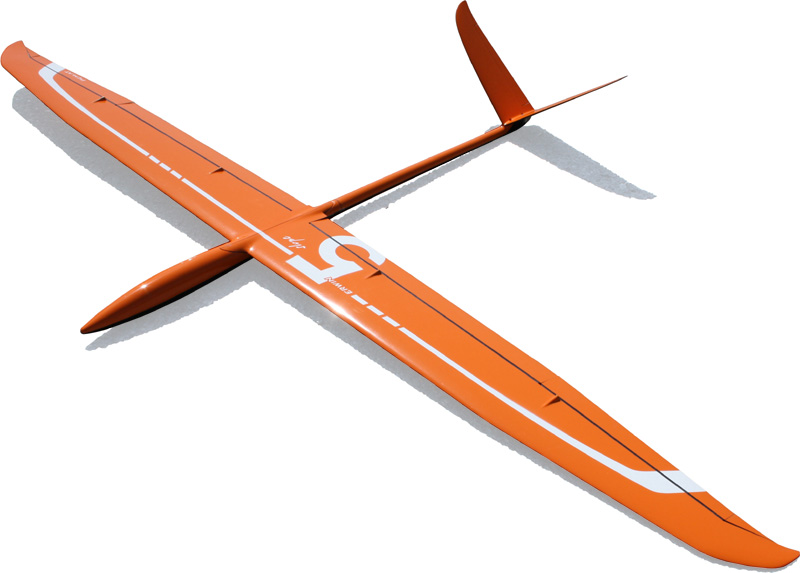

Erwin
2m-Glider
A good friend needs a "real" name
|
| |
|
|
|
|
|
| Model: |
Erwin
|
| Wingspan. [mm]: |
2 045
|
| Weight [g]: |
1 300
(DSS 1 600)
|
| Airfoil |
HQW/1,5/7 mod.
|
| Aspect ratio: |
13,54
|
He
can fly from smooth thermal weather over slope- and acrobatic
flying
up to moderate dynamic
soaring!
For
more details have a look at the building
instruction (pdf-file 1,2MB)
For
more details of the model read the review
of Aufwind-magazine (German) and the review
of
RCM&E
(English).
|
|
available
in 2 versions::
|
|
Erwin
- BASIS
(without varnish, with graphic)
|
|
|
|
|
Erwin
- FINISH
(with varnish on upper side and graphic)
|
|
|
|
Standard
colours (please click):
|
|
Closed fuselage for more stability
|
|
|
Two wing-connectors
possible
Easy system for ballast by using different connectors
(1x carbon stab and 2 steel stabs are enclosed in the kit)
|
|
Pre-fabricated
covers for rudder-gaps
|
|
|
|
|
|
Detail elevator
|
|
|
Servoboard
|
|
The
V-tail is manufactured
in one part.
Holes
and threads for
mounting the
v-tail on the fuselage are
pre-fabricated.
|
|
| Exact
fitting between the two parts of the fuselage. The difference
between the aerodynamic angles of wing and elevator is pre-set. |
|
| How
to install 2,4 GHz |
|
|
Available
in several colour combinations
|
|
|
Accessory: wing- and tailcover in 2 versions
|
|
|
Kitparts
(are enclosed in kit)
|
|
|
|
| Fuselage: |
| - |
CFR/GFR, with CFR rovings |
|
| Wing: |
| - |
cutted wing (in the middle) --> little package easy to handle in
the car or an backpack. |
| - |
CFR/GFR shell construction without support material. That's why the
surface is more resistant against damage. |
| - |
spar with CFR/GFR-hose |
| - |
Elliptical lift distribution |
| - |
crescent-shaped wing-tip |
| - |
HQW/1,5/7 mod. - very good for use with plain flaps |
|
| V-tail: |
| - |
CFR shell construction without support material |
| - |
spar with CFR/GFR-hose |
|
|
Prefabrication:
|
| - |
Cut ailerons, plain flaps and elevator with silicon-mounting |
| - |
wing is cut in the middle |
| - |
prebuilt hole for ballast |
| - |
pre-cut servo-boxes in the wing, covers enclosed |
| - |
the mounting of the V-tail is pre-fabricated |
| - |
building instruction enclosed |
|
|
|
Videos:
Erwin flying
For downloading the file use "right mouse-button" -
"save as..."
|
Video about the whole
ability of use from Jens Kleinert (AUFWIND)
WMV_file - 640X480, 138 sec (11.910 Kb)
|
|
...more
videos |
|
