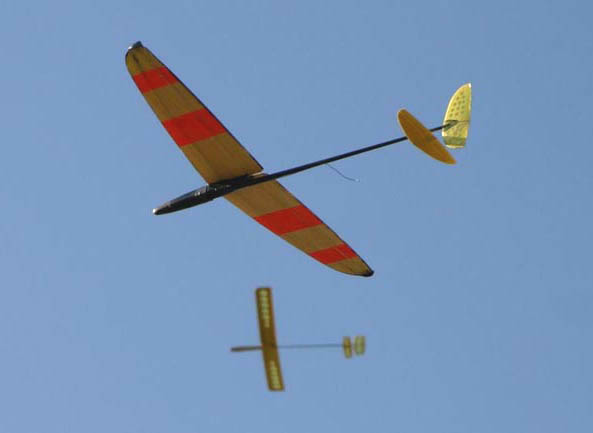

Mini-DLG for funflying and for beginners in DLG-flying




Version MINI-Q (controlled by aileron/elevator)


Model:
MINI

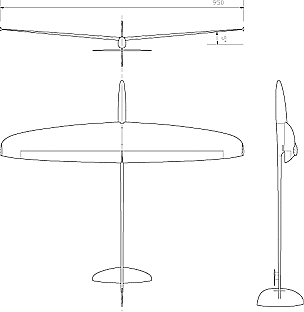

Wingspan [mm]:
950
Aspect ratio:
7,7
Wingarea [dm²]:
11,7
Wing loading [g/dm²]:
12-13
Weight [g]:
155 (Mini-S),
165 (Mini-Q), 190 (Mini-Q carbon)
Airfoil:
AG03 mod

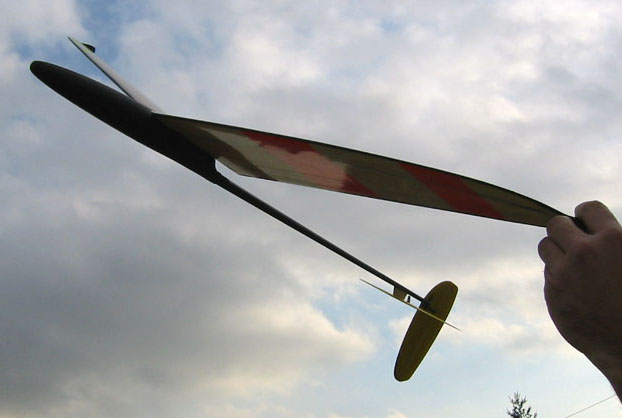

Mini-DLG with maximum fun factor; starts with extreme starting heights; for fast fun always and everywhere

DLG controlled by 2 axis (elevator/rudder or elevator/aileron)
with short building time and low costs for equipping

For more technical information have a look at our building instruction (pdf )
and at the sanding instructions for the balsa stabs elevator / rudder (pdf)

Mini-Fireworks Q now with Design 09
Corporate identity in the Fireworks-family.

available in 2 versions:

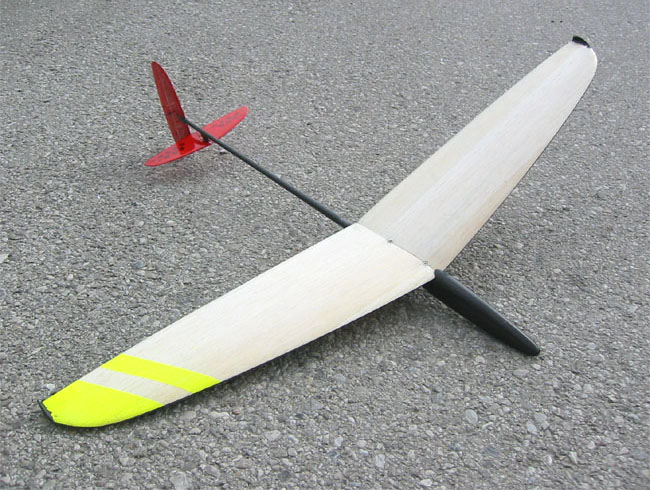

MINI - S(eite)
controlled by
elevator/rudder
reasonable model for beginners in DLG-flying
MINI - Q(uer)
controlled by elevator/aileron
highest agility
for full aerobatic programme

Details:
Mini-Fireworks: Design from 2009
Corporate identity in the Fireworks-family.
Coloured cross beams on the underside for better visibility

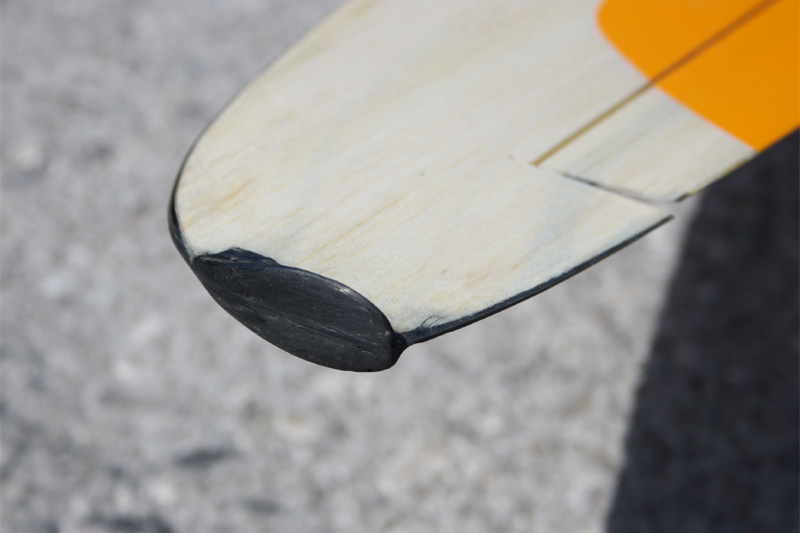

Ready molded winglets on both sides give the necessary grip for launching the glider.
Everything has its place on the radio board. (Here you see: Mini-Q).
Controlling the ailerons (Mini-Q)

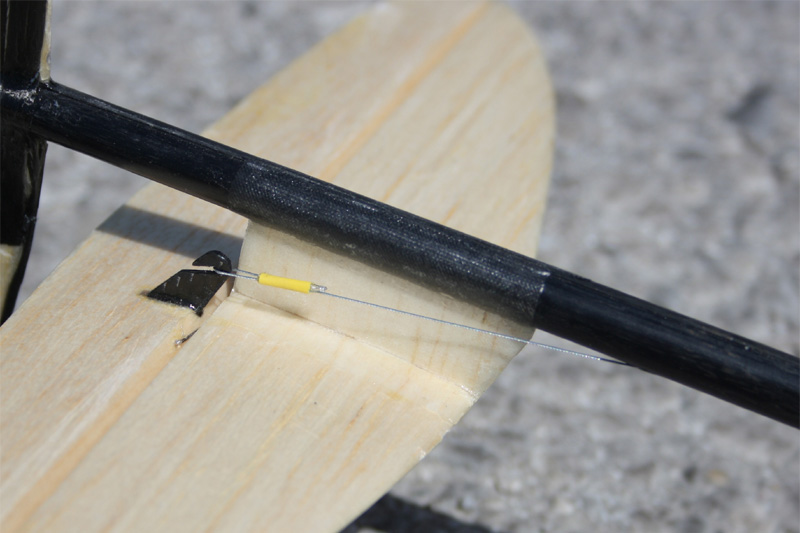

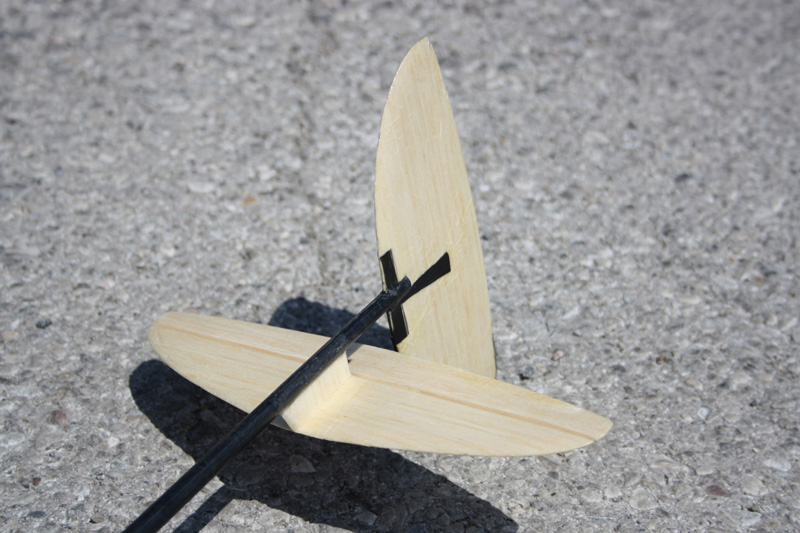

The stabilizer is made of balsa, which is sanded and sealed.
The pylone that holds the horizontal stabilizer is also balsa. It is covered with glass fabric and soaked with super glue for better strength.

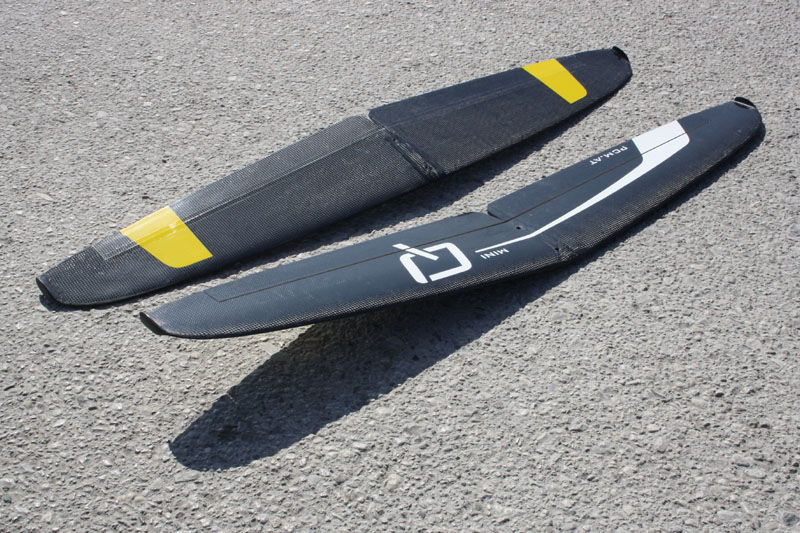

Mini is also available with carbon wing.
The paint on the wing is possible in following colors:
white, yellow, orange, red, pink, blue, green
Top and bottom can be made in different colors.
Installation proposal for 2,4 GHz (inside carbon canopy), top view
Installation proposal for 2,4 GHz (inside carbon canopy), view from below
Canopy made of kevlar for 2,4 GHz

ACCESSORIES
Protective bags for wing
4 pieces of GP NiMH accu 35AAAH fit perfectly into Mini.

Construction:
Fuselage:
  • CFR, three parts (boom, mid part, canopy)
Wing:
  • Shell made of balsa-sandwich with glass or carbon fabric
  • Spar booms made of carbon / shear web made of balsa planked with glass
Stabilizer:
  • Balsa boards

Pre-fabrication:


  • Ailerons are cut and mounted with adhesive tape
  • Screw mounting for wing is pre-fabricated
  • Kitparts (radio board, pushrods, levers, glass fabric, carbon rovings etc.) are included in kit
  • Outline of balsa stabs is cut
  • The building instruction can be downloaded from the website

Video
See MINI starting and have a look at some details. (2,9MB)
